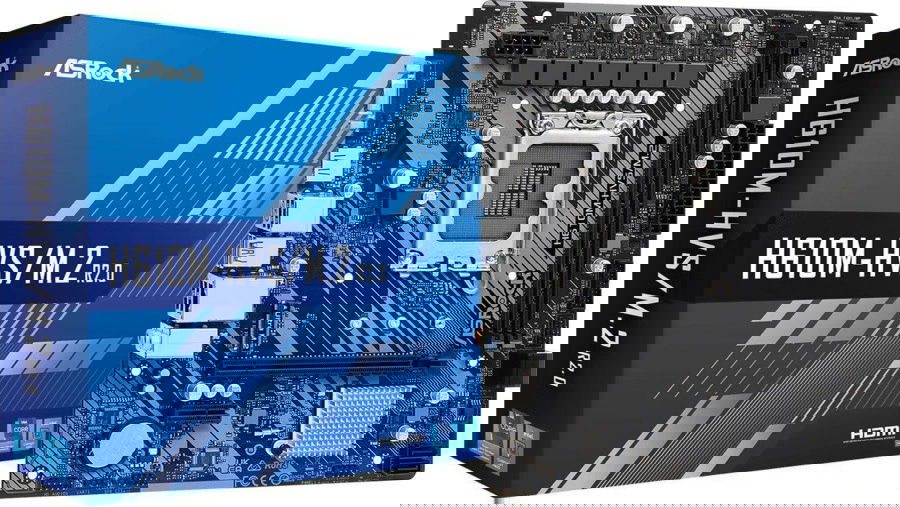

ASRock H610M-HVS/M.2 R2.0 - Socket 1700 | Chipset Intel H610 | DDR4 |
<
>
<
>
Pildid on illustratiivsed. Nendel kujutatud toode võib erineda pakutavast või sisaldada tootekomplekti mittekuuluvaid osiseid.
TootjaAsrock
TootekoodH610M-HVS/M.2 R2.0
Hind71,80 €
Hind (km-ta)58,85 €
TarneaegOtsas
TransportTASUTA ÜLE EESTI!
Saadaval kiiremini
Processor manufacturer:
Intel
Processor socket:
LGA 1700
Compatible processor series:
Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7
Maximum number of SMP processors:
1
Supported memory types:
DDR4-SDRAM
Number of memory slots:
2
Maximum internal memory:
64 GB
Memory slots type:
DIMM
Memory channels:
Dual-channel
ECC сompatibility:
Non-ECC
Supported memory clock speeds:
3200 MHz
Unbuffered memory:
Yes
Supported storage drive interfaces:
M.2, SATA III
Supported storage drive types:
HDD & SSD
Parallel processing technology support:
Not supported
Maximum resolution:
4096 x 2160 pixels
HDCP:
Yes
USB 2.0 connectors:
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors:
2
USB 3.2 Gen 2 (3.1 Gen 2) connectors:
0
Number of SATA III connectors:
0
Front panel connector:
Yes
ATX Power connector (24-pin):
Yes
CPU fan connector:
Yes
Chassis intrusion connector:
Yes
EPS power connector (8-pin):
Yes
TPM connector:
Yes
USB 2.0 ports quantity:
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity:
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity:
0
Ethernet LAN (RJ-45) ports:
1
VGA (D-Sub) ports quantity:
1
HDMI ports quantity:
1
DVI-D ports quantity:
0
PS/2 ports quantity:
1
Headphone outputs:
1
Line-in:
Yes
Microphone in:
Yes
Wi-Fi:
No
Ethernet LAN:
Yes
Ethernet interface type:
Gigabit Ethernet
LAN controller:
Realtek RTL8111H
Wake-on-LAN ready:
Yes
Component for:
PC
Motherboard form factor:
micro ATX
Motherboard chipset family:
Intel
Motherboard chipset:
Intel H610
Audio output channels:
7.1 channels
Audio chip:
Realtek ALC897
PC health monitoring:
CPU, Fan, Voltage, Water cooling
Windows operating systems supported:
Windows 10 Education x64, Windows 11 x64
Certification:
- FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required)
PCI Express x1 (Gen 3.x) slots:
1
PCI Express x16 (Gen 4.x) slots:
1
Number of M.2 (M) slots:
1
BIOS type:
UEFI AMI
BIOS memory size:
128 Mbit
System Management BIOS (SMBIOS) version:
2.7
Width:
223 mm
Depth:
188 mm
Cables included:
SATA
